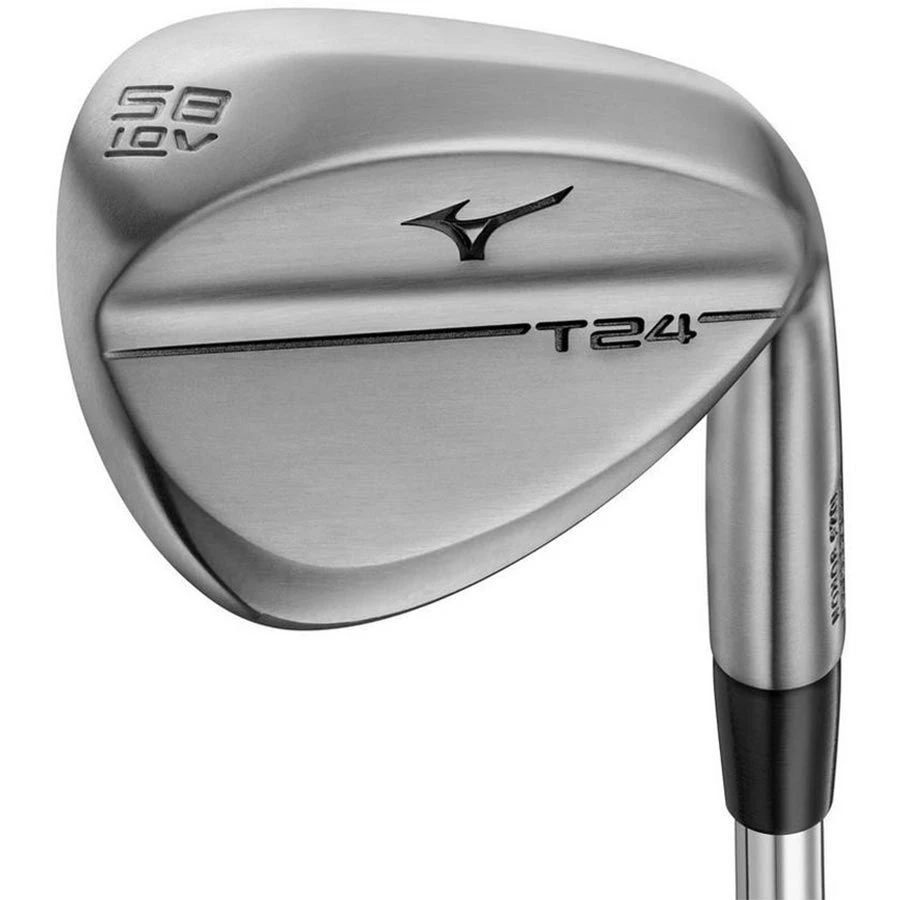

Mizuno T24 Raw Wedge

Mizuno T24 Wedge

Grain Flow Forged HD

One-piece Grain Flow Forged HD from 1025E Pure Select mile carbon steel at Mizuno’s iconic facility in Hiroshima, Japan. Where Mizuno irons have been produced since 1968.

1025 Boron

A carbon steel that featurs 30% greater strength.

Harmonic Impact Technology

Fine tuned head geometry delivers ideal impact feel and feedback.

Hydroflow Micro Grooves

Laser etched microscopic grooves help channel away moisture for maximum spin in wet conditions.

Face Milling Lines

Increased surface roughness to increase spin nearer the green.

Loft/COG Flow Design

The COG of these wedges flows throughout the set to give more control and versatility.

Bounce Specific Sole Grinds

Matched bounce and sole grind for an ideal level of versatility.

• S-Type: high bounce with limited relief for full shots.
• D-Type: mid bounce with moderate relief for gentle manipulation.
• C-Type: mid/high bounce with generous relief for a wide range of players and conditions.
• V-Type: high bounce with aggressive relief for versatility on square and open faced shots.
• X-Type: low bounce with aggressive relief for advanced players for the most versatility.

Loft Specific Head Shapes

Graduated head shapes from pitching wedge to lob wedge ideally suited for how each wedge is used.

Copper Underlay

Thin copper layer beneath a nickel chrome to provide a further enhanced impact feel.

Refined Topline

Mass taken from the toe portion and a lower hosel blend creates a smaller profile without loss of effective hitting area.

Quad Cut + Grooves

An adjustment of the groove shoulder camber and the taper of the groove profile allows a tighter groove pattern for increased spin rates on all shots.

Wrap-Around Sole Relief

Increased sole relief from heel to toe across all 5 grind options.

Spin-weighted Blade Design

A flared upper portion of the blade creates higher spin and penetrating trajectory, particularly from strikes high on the club face.

Specifications

Loft	Bounce	Lie	Swing Weight	Offset	Length
46°	8°	63°	D4	0.091	35.5″
48°	10°	63°	D4	0.060	35.5″
50°	8°	63.°	D5	0.106	35.25″
52°	10°	63°	D5	0.075	35.25″
54°	8°	63°	D5	0.091	35.25″
54°	10°	63°	D5	0.110	35.25″
56°	6°	63°	D5	0.091	35.25″
56°	8°	63°	D5	0.059	35.25″
56°	10°	63°	D5	0.059	35.25″
56°	12°	63°	D5	0.079	35.25″
58°	4°	63°	D5	0.091	35.25″
58°	8°	63°	D5	0.059	35.25″
58°	10°	63°	D5	0.014	35.25″
60°	6°	63°	D5	0.039	35.25″
60°	10°	63°	D5	0.028	35.25″
60°	12°	63°	D5	0.017	35.25″

Shaft Model	Weight	Launch/Spin	Flex
True Temper Dynamic Gold Tour Issue	132g (S)	Low/Medium	S400 (S)

Grip Model	Size	Weight
Golf Pride MCC Black/Grey	Standard	52g
